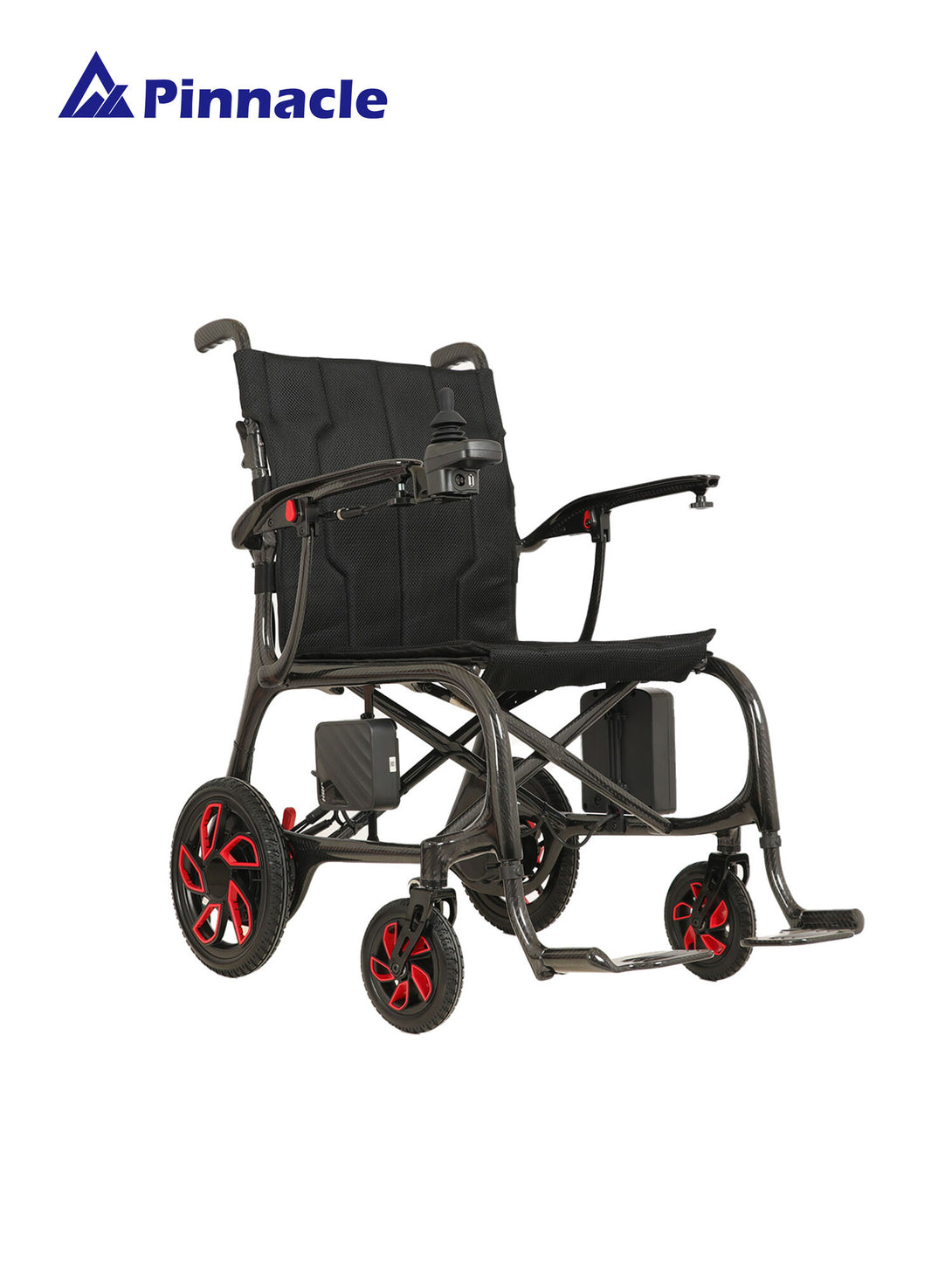

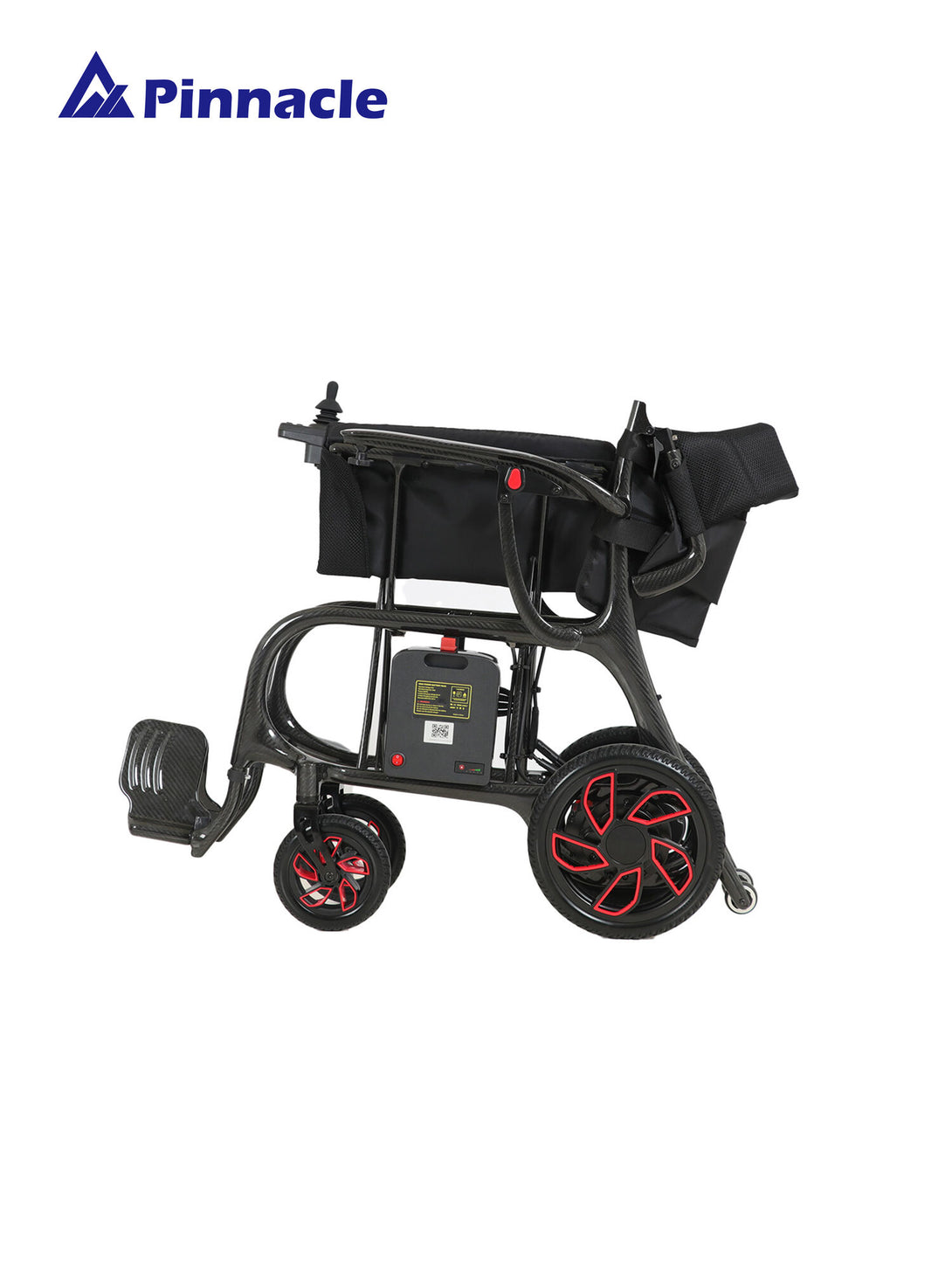

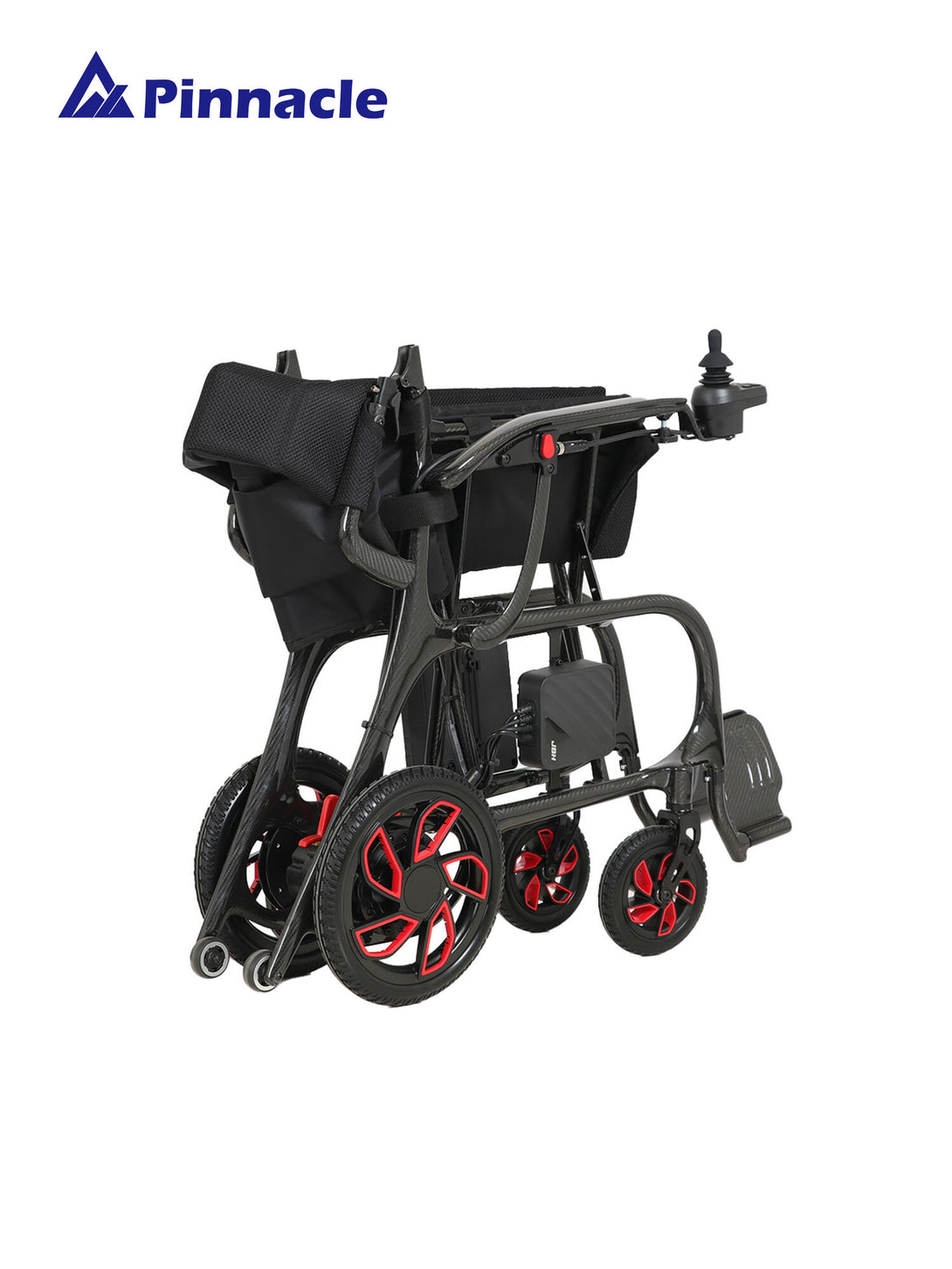

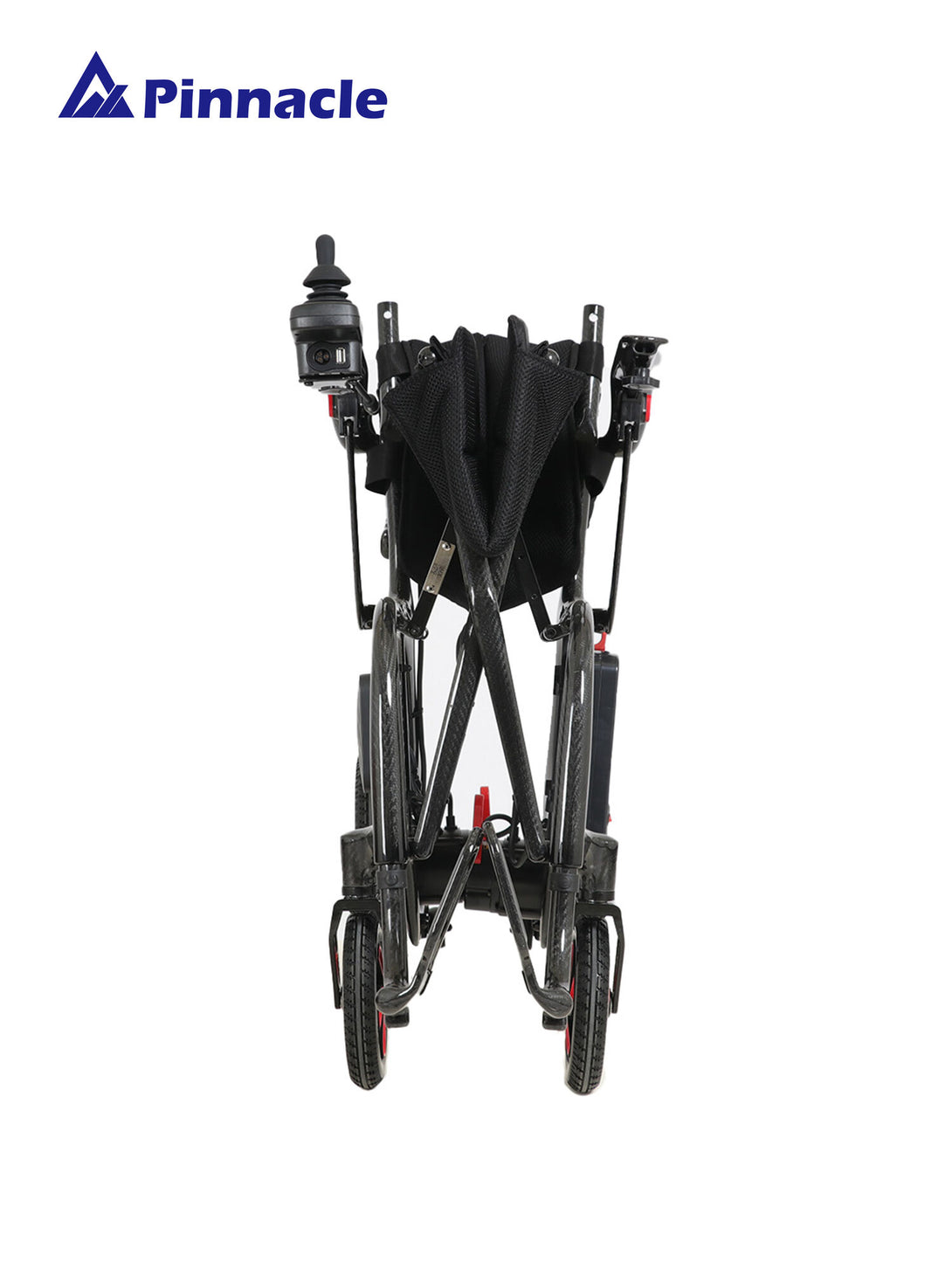

Pinnacle Ultra-Light Carbon Fibre Electric Wheelchair – 13.8kg (Without Battery)

Premium Carbon Fibre • 220W×2 Brushless Motors • One-Touch Battery Removal

The Pinnacle 07964 Carbon Fibre Electric Wheelchair delivers the perfect balance of ultra-lightweight design, durability, and high performance. Built with a full carbon fibre frame, this wheelchair weighs only 13.8kg (without battery)—making it one of the lightest powered wheelchairs in its class. Ideal for travel, daily mobility, aged care, and NDIS participants seeking superior portability.

⭐ Key Features

Ultra-Light Carbon Fibre Frame

• Weighs just 13.8kg (without battery)

• Stronger and lighter than aluminium

• Easy to lift into cars, vans, or storage spaces

One-Touch Battery Removal

• Simple quick-release design

• Easy to charge on or off the wheelchair

• Convenient for travel or users with limited hand strength

Powerful Dual Brushless Motors

• 220W × 2 brushless motors

• Quiet, energy-efficient and long-lasting

• Smooth handling on indoor and outdoor surfaces

Highly Adjustable & User-Friendly

• Flip-up armrests for side transfers

• Flip-up footrests for easier access

• Foldable backrest for compact storage

• Includes safety belt and storage bag

📏 Specifications

Dimensions

• Overall Width: 620 mm

• Overall Length: 905 mm

• Internal Seat Width: 440 mm

• Seat Depth: 410 mm

• Backrest Height: 450 mm

• Seat Height: 478 mm

• Turning Radius: 720 mm

Weight

• 13.8 kg (Net Weight, without battery)

• 15.2 kg (Net Weight, with battery)

• 21 kg shipping weight

Motor & Battery

• Motor: 220W × 2 brushless

• Battery: 24V 10Ah lithium

• Max Speed: 6 km/h

• Range: up to 18 km

• Max Charging Time: 5.3 hours

• Climbing Capacity: 6° incline

Tyres

• Caster Size: 7-inch front, 10-inch rear

Capacity

• Safe Working Load (SWL): 120 kg

Packaging

• Shipping Width: 0.840 m

• Shipping Length: 0.830 m

• Shipping Height: 0.320 m

🔒 Warranty

• Frame: 3 Years

• Motors: 1 Year

• Controller & CPU: 1 Year

• Battery: 1 Year

✔️ Ideal For

• Transport in cars, taxis, rideshare

• Daily home and community mobility

• Seniors & carers needing minimal lifting effort

• NDIS participants requiring a lightweight powered solution

• Travel-friendly powered wheelchair users
